VP30
Hygienic configuration. This page now shows the matching configuration image, complete supplied specifications, performance diagram and dimensional drawing.
- MAX FLOW
- 235.1GPM 890 L/min
- MAX PRESSURE
- 102PSI 7 bar
- MAX SOLIDS
- 0.31IN 8 mm
- PORT
- 3" Suction / discharge
Configuration data and graphics mapped from the supplied detailed product inventory.
One model.
Distinct configurations.
Use the tabs below the main image to change between plastic, metal, hygienic and electromechanical versions available for this model.

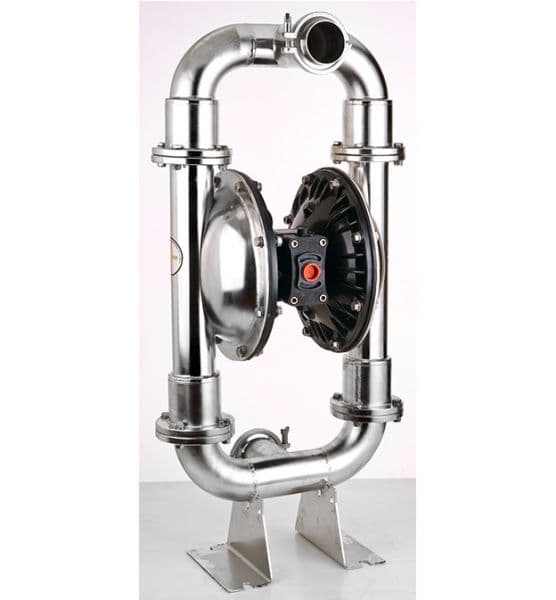

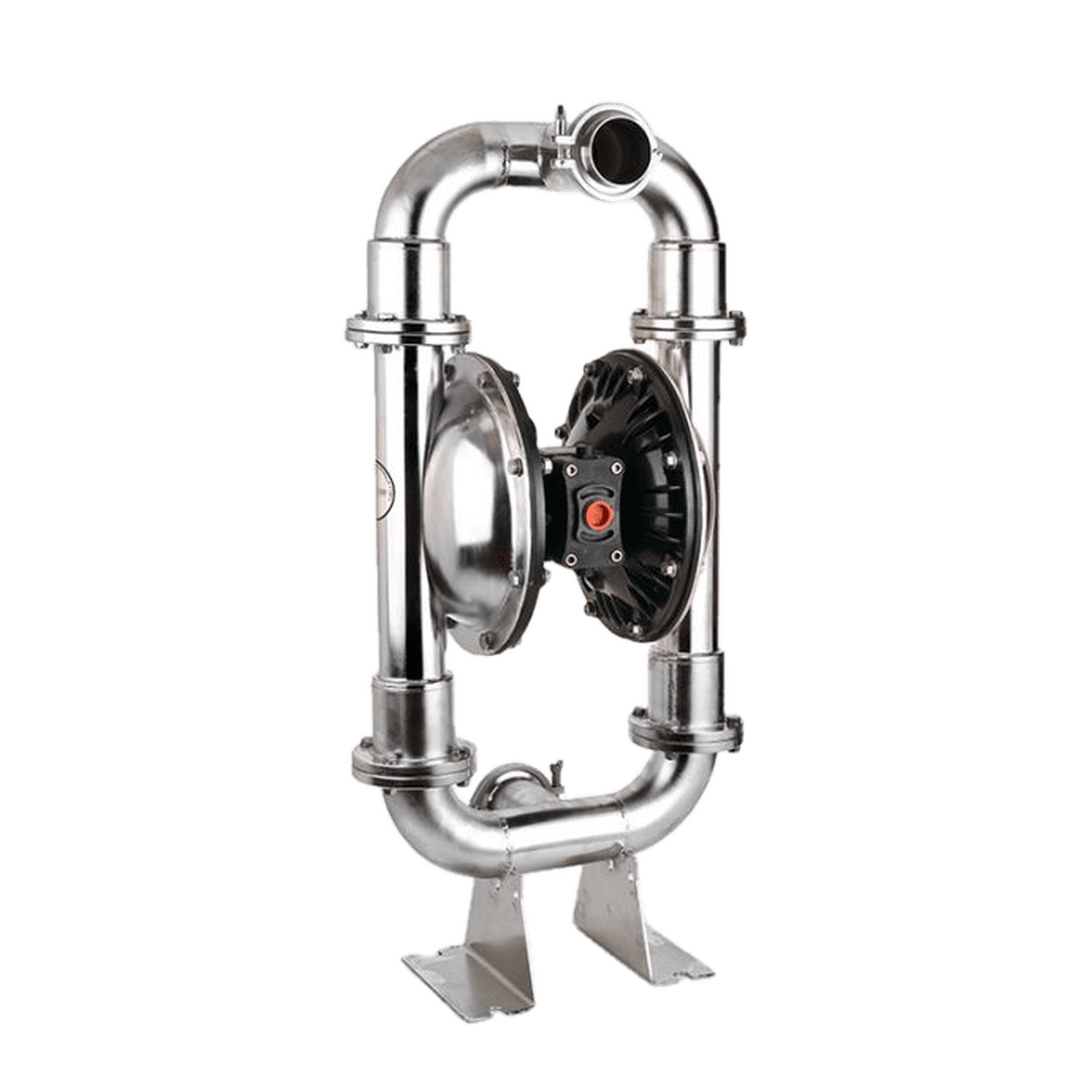

Matching supplied configuration imageHygienic configuration
This view uses the matching product image, specifications, performance diagram and dimensional drawing supplied for this configuration.
Compatibility is not assumed. Confirm fluid, temperature and installation conditions with the Vesta team.
VP30
Hygienic configuration
Values below belong to the selected configuration. They are not borrowed from another body or drive version.
- 01Maximum capacity
- 890 L/min
- 02Suction / discharge connection
- 3"
- 03Main body options
- Black polypropylene, PVDF, Hygienic manifold
- 04Diaphragm options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 05Ball valve options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 06Ball seat options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 07Air inlet
- 3/4"
- 08Solids handling
- 8 mm
- 09Suction depth
- 6 m
- 10Maximum operating pressure
- 7 bar
Where VP30
can enter the conversation.
Application tags reflect supplied catalog evidence, not automatic compatibility approval.
Chemical transfer
Confirm fluid, temperature, viscosity and selected materials.
Wastewater
Confirm fluid, temperature, viscosity and selected materials.
Paint & coatings
Confirm fluid, temperature, viscosity and selected materials.
Food processing
Confirm fluid, temperature, viscosity and selected materials.
Mining
Confirm fluid, temperature, viscosity and selected materials.

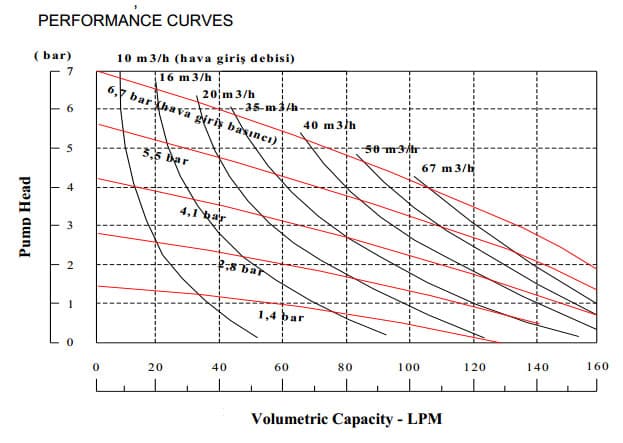

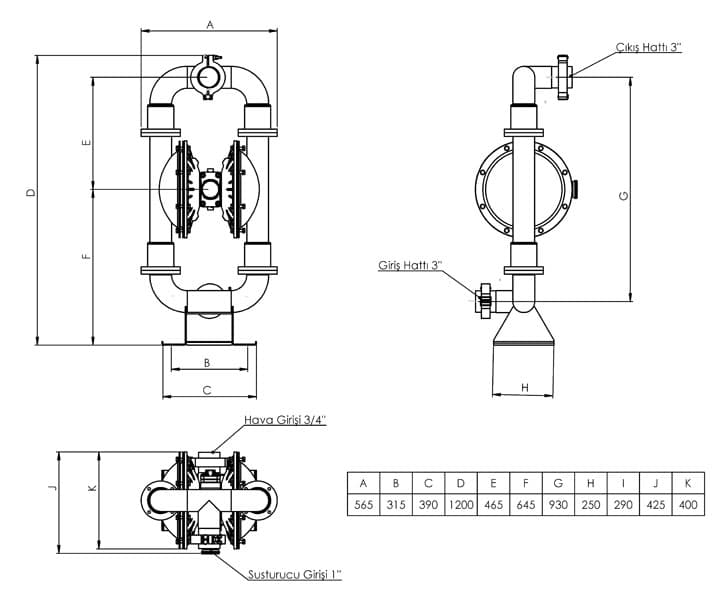

Performance
and dimensions.
These are the supplied graphics assigned to this exact model and configuration.
Share the operating conditions.
We’ll use your application details to confirm the model, materials, and configuration before quoting.
