VP15
Electromechanical. Explore complete specifications, performance data, and dimensions specific to this material and drive configuration.
- MAX FLOW
- 60.8GPM 230 L/min
- MAX PRESSURE
- 58PSI 4 bar
- MAX SOLIDS
- 0.24IN 6 mm
- PORT
- 1 1/2" Suction / discharge
Technical data, performance charts, and dimensions are specific to the selected configuration.
One model.
Distinct configurations.
Use the tabs below the main image to change between plastic, metal, hygienic and electromechanical versions available for this model.

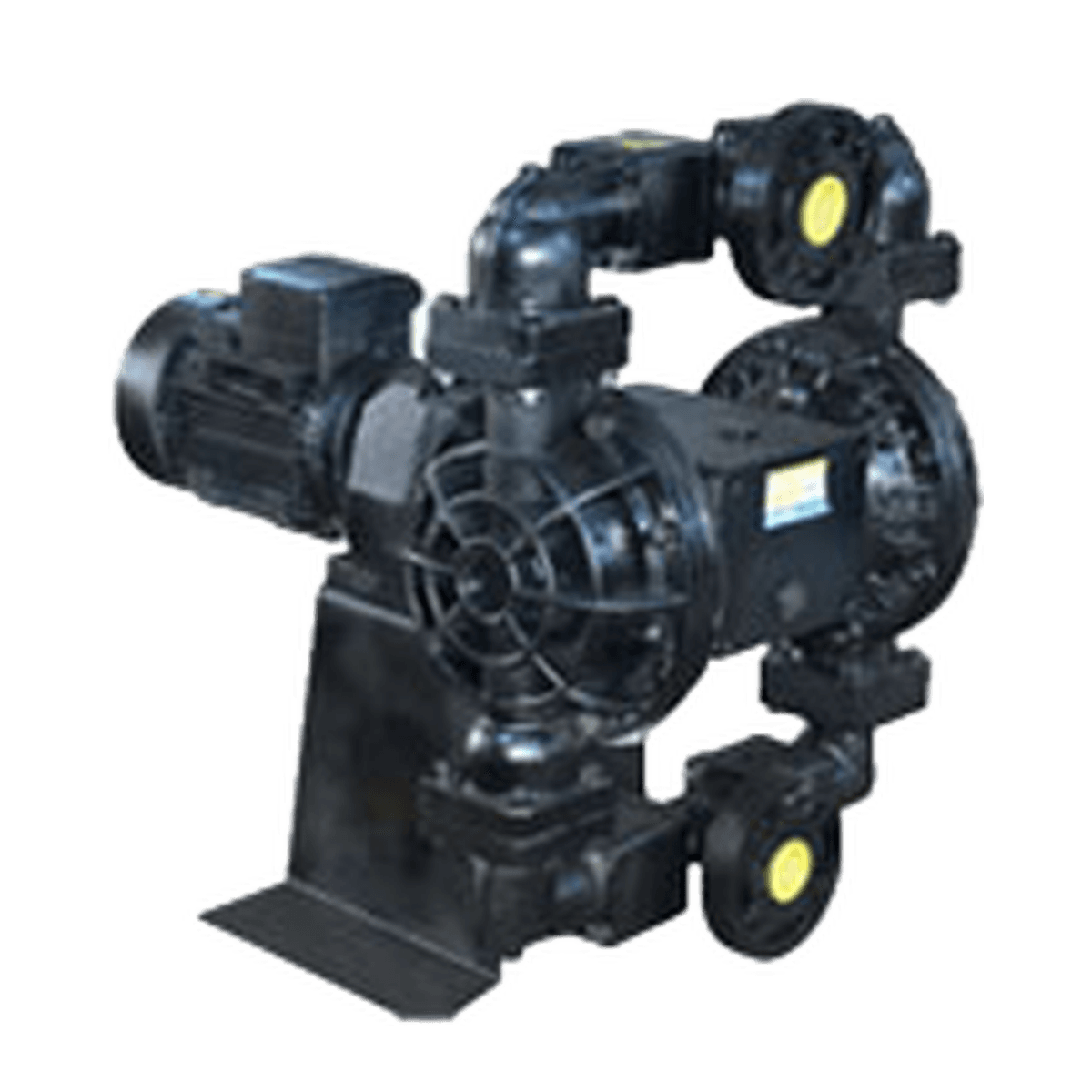

Configuration reference imageElectromechanical
Select materials and configurations to view the corresponding technical data, performance curves, and dimensions.
Compatibility is not assumed. Confirm fluid, temperature and installation conditions with the Vesta team.
VP15
Electromechanical
Detailed technical specifications and performance limits specific to the selected model and configuration.
- 01Model
- VP15 E
- 02Maximum operating pressure
- 4 bar
- 03Voltage
- 380 / 220 V, 50 Hz
- 04Energy consumption
- 4 kW
- 05Displacement per stroke
- 1.47 L/stroke
- 06Maximum discharge head
- 40 m
- 07Maximum suction head
- 5 m
- 08Solids handling
- 6 mm
- 09Maximum capacity
- 13.8 m³/h
- 10Speed
- 78 RPM
- 11Maximum liquid temperature
- 100 °C
- 12Inlet
- 1 1/2"
- 13Outlet
- 1 1/2"
Where VP15
can enter the conversation.
Common industry applications and use cases. Always verify chemical compatibility and operating conditions before selection.

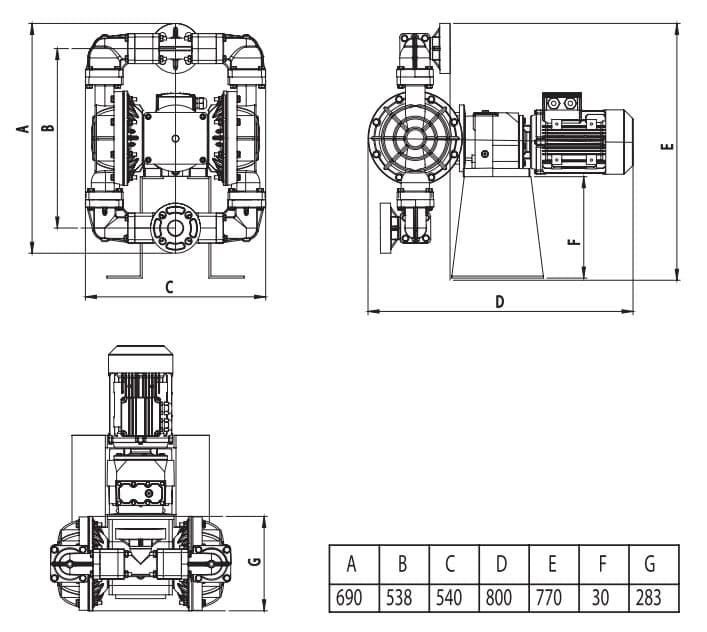

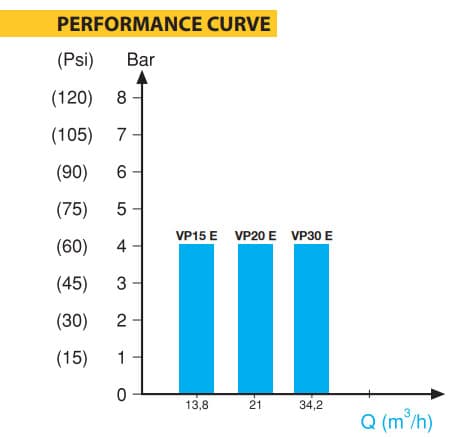

Performance
and dimensions.
Review the documented technical evidence for this specific configuration.
