VP15
Metal body. Explore complete specifications, performance data, and dimensions specific to this material and drive configuration.
- MAX FLOW
- 105.7GPM 400 L/min
- MAX PRESSURE
- 102PSI 7 bar
- MAX SOLIDS
- 0.24IN 6 mm
- PORT
- 1 1/2" Suction / discharge
Technical data, performance charts, and dimensions are specific to the selected configuration.
One model.
Distinct configurations.
Use the tabs below the main image to change between plastic, metal, hygienic and electromechanical versions available for this model.

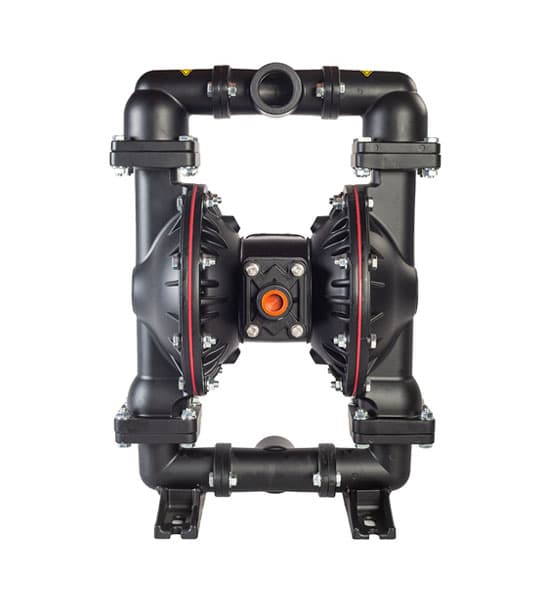

Configuration reference imageMetal body
Select materials and configurations to view the corresponding technical data, performance curves, and dimensions.
Compatibility is not assumed. Confirm fluid, temperature and installation conditions with the Vesta team.

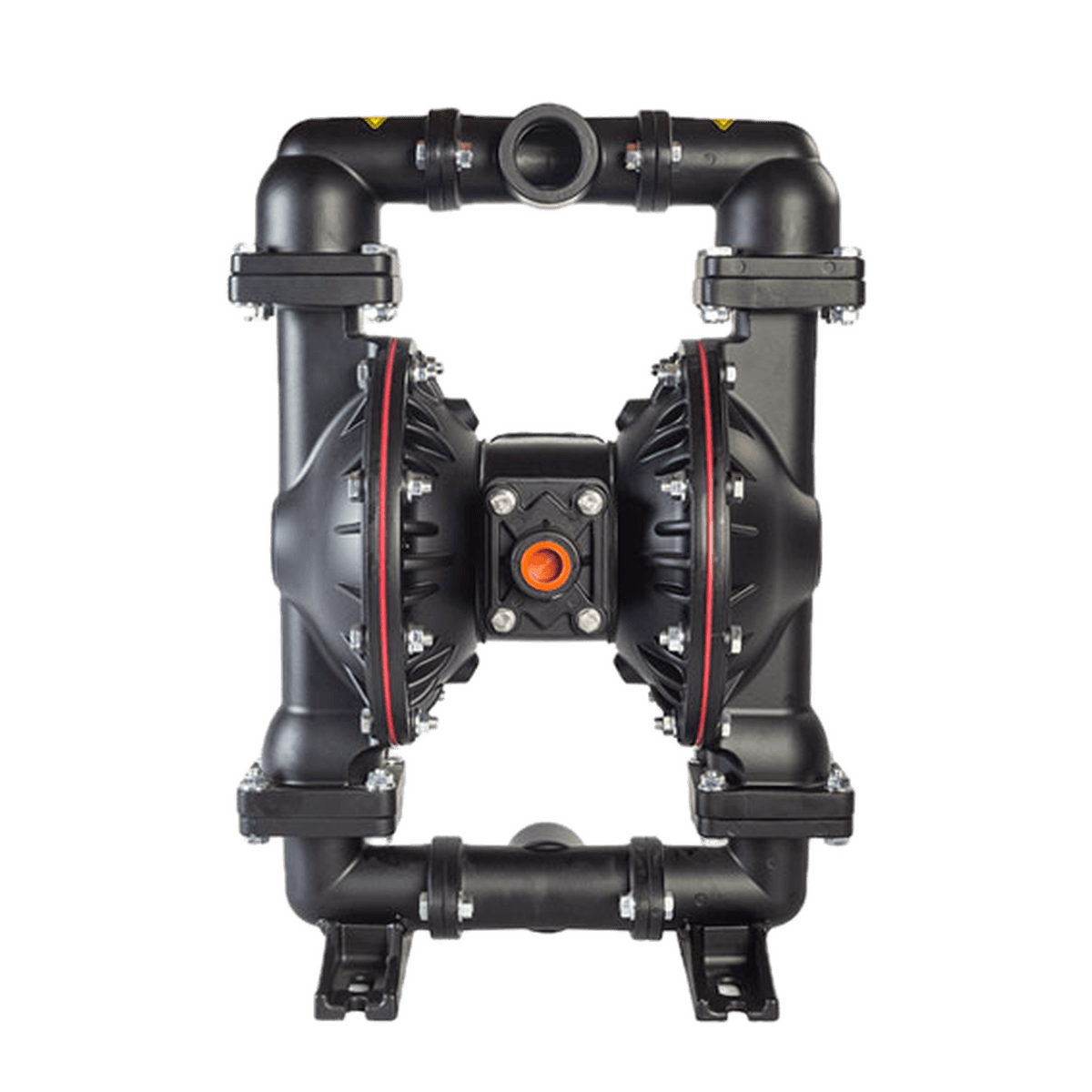

VP15
Metal body
Detailed technical specifications and performance limits specific to the selected model and configuration.
- 01Maximum capacity
- 400 L/min
- 02Suction / discharge connection
- 1 1/2"
- 03Main body options
- Aluminum, Cast iron, Cast stainless steel
- 04Diaphragm options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 05Ball valve options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 06Ball seat options
- Santoprene, Neoprene, Buna-N / NBR, EPDM, PTFE, Viton
- 07Air inlet
- 3/4"
- 08Solids handling
- 6 mm
- 09Suction depth
- 6 m
- 10Maximum operating pressure
- 7 bar
- 11Maximum delivery head
- 70 m
- 12Operating temperature
- -18 to +100 °C
- 13Recommended maximum viscosity
- 5,000 cP
- 14Documentation
- CE / ATEX
Where VP15
can enter the conversation.
Common industry applications and use cases. Always verify chemical compatibility and operating conditions before selection.

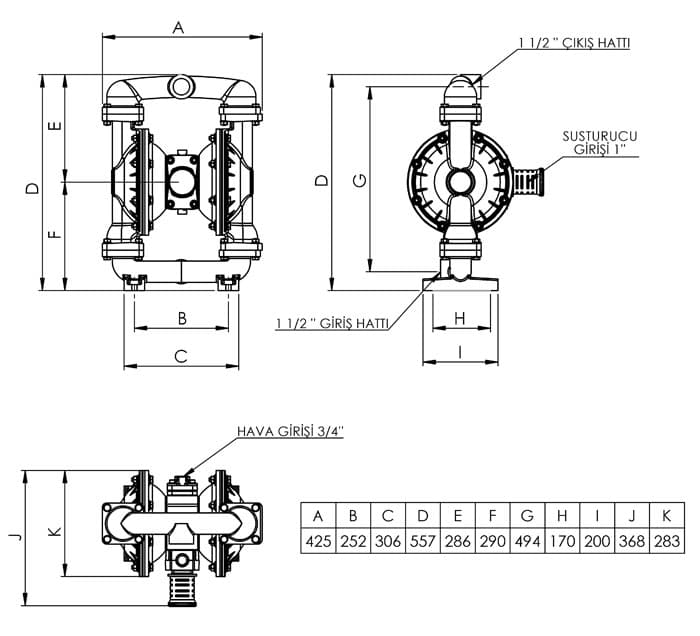

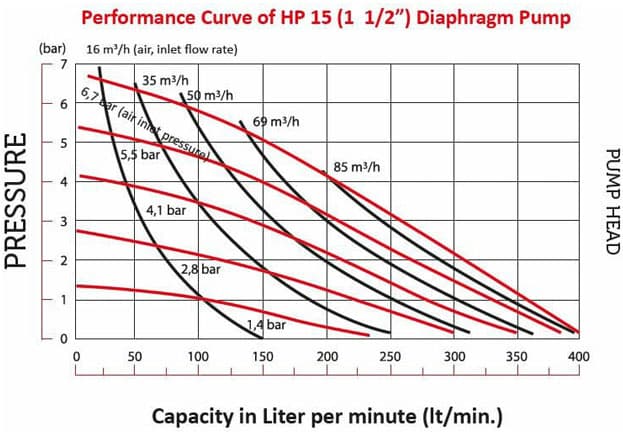

Performance
and dimensions.
Review the documented technical evidence for this specific configuration.
